Power Range: The NEMA Series covers a power range from 1 to 500 HP across 18 frame sizes, offering flexible and convenient selection for diverse equipment needs in the North American market. Available in 2, 4, 6, and 8-pole speed configurations, they meet various load characteristics for wide application compatibility.
Rated Voltage: Designed for direct connection to standard North American three-phase AC power supplies at 208-230/460V, 460V, or 575V, 60Hz, requiring no additional configuration. Their strong voltage adaptability ensures stable operation under different grid conditions.
Efficiency Class: These motors achieve the NEMA Premium® efficiency level, meeting the U.S. Energy Policy Act requirements. They offer an efficiency improvement of 3-5 percentage points over standard motors for significant energy savings. The use of high-frequency, low-loss silicon steel and optimized winding design effectively suppresses harmonic losses, maintaining excellent efficiency across a wide load range.
Power Factor: Featuring an optimized electromagnetic design, the motors deliver a high power factor of 0.85-0.92 at 60Hz. This minimizes reactive power losses, improves grid power quality, reduces line losses, and enhances overall system operating efficiency.
Protection Level: With a Totally Enclosed Fan-Cooled (TEFC) design, the motors are effectively sealed against dust and water ingress, making them suitable for North American industrial environments and extending service life. The enclosed self-ventilated construction provides excellent heat dissipation for reliable, long-term operation.
Frame Construction: The high-strength cast iron frame ensures robust durability and excellent heat dissipation, capable of withstanding significant mechanical stress for reliable long-term operation. With its corrosion-resistant surface finish and Totally Enclosed Fan-Cooled (TEFC) design, it provides a clean appearance, extended service life, and reliable performance in North American industrial settings.
Cooling Method: Designed with a Totally Enclosed Fan-Cooled (TEFC) system, it incorporates a high-efficiency internal cooling fan. This ensures stable airflow and effective heat dissipation at all motor speeds. The optimized airflow path provides high cooling efficiency, maintaining stable temperature rise across a wide operating range and preventing performance loss due to overheating.
Insulation Class: The Class F insulation system is rated for Class B temperature rise, providing a substantial thermal margin for extended insulation life and high reliability under elevated operating temperatures. The stator is processed using Vacuum Pressure Impregnation (VPI), ensuring stable insulation performance and strong resistance to voltage surges for safe, long-term operation.
Mounting Options: Offered in both NEMA C-face flange and foot-mounted configurations to accommodate horizontal, vertical, and other installation requirements. The frame feet are designed with standardized mounting holes, enabling quick and secure connection to equipment and reducing installation time.
Bearing System: Equipped with deep groove ball bearings. Insulation protection is provided as standard to effectively prevent bearing current damage and extend bearing service life. Designed for long-life lubrication, the system features extended maintenance intervals, reducing upkeep costs and ensuring suitability for North American industrial environments.

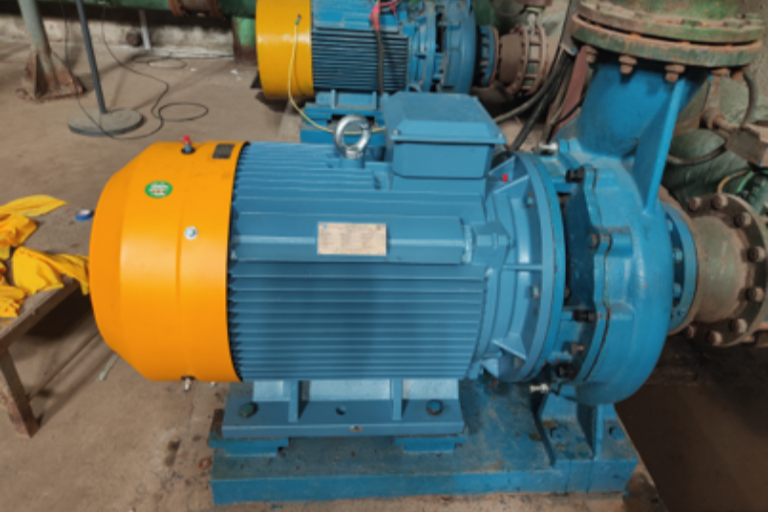

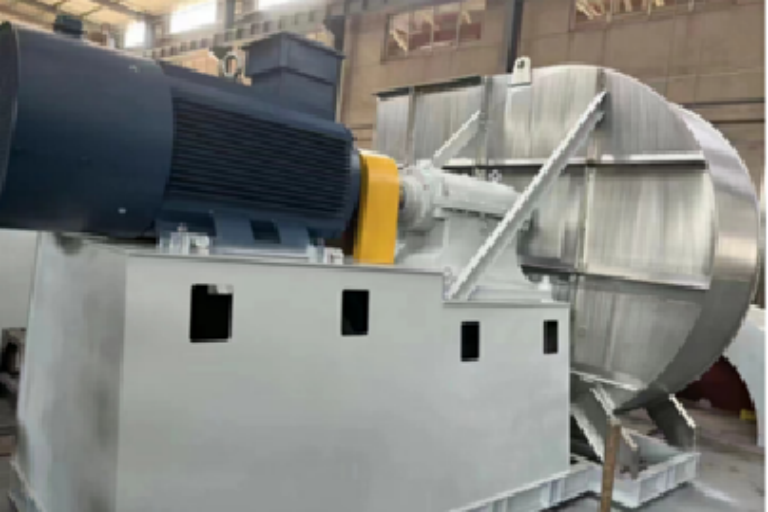

Starting Torque: Conforms to NEMA Design B characteristics, providing excellent starting performance suitable for heavy-duty and frequent start-stop applications. The motors ensure smooth starting with minimal impact on the power supply and connected equipment, offering strong adaptability for driving fans, pumps, compressors, and similar machinery.
Breakdown Torque: Meets NEMA standard requirements, offering strong overload capacity to withstand short-term overloads. They maintain stable operation under demanding and fluctuating load conditions, ensuring high reliability for connected equipment.
Noise Level: Features an optimized airflow design and a low-noise fan for quiet operation in compliance with NEMA MG1 standards. This improves the working environment, making the motors suitable for noise-sensitive locations such as office buildings and hospitals.
Vibration Grade: The rotor is dynamically balanced to meet NEMA MG1 Part 7 standards for vibration severity. This ensures smooth operation, reduces stress on connected machinery, and supports long-term stable performance, thereby extending equipment service life.
Duty Cycle: Rated for Continuous Duty (NEMA S1), the motors are engineered for reliable, long-term continuous operation with stable temperature rise. The optimized thermal design reduces temperature rise by approximately 10K compared to conventional motors, ensuring effective heat dissipation and consistent performance.
Operating Temperature: Designed for reliable operation in ambient temperatures from -15°C to +40°C (5°F to 104°F). With a substantial temperature rise margin, it offers strong adaptability for stable performance across various climatic conditions. The optimized cooling design ensures consistent operation even in high-temperature environments, meeting seasonal demands across North America.
Altitude: Suitable for direct use at altitudes up to 3,300 feet (1,000 meters). Applications above this altitude require derating per relevant standards. Customized solutions are available for special environments, including anti-corrosion, moisture-proof, and explosion-proof treatments.
Safety Certifications: The product is certified by UL, CSA, and CE, meeting the safety access requirements for North American and European markets. Its energy-saving performance is also validated by official energy efficiency labeling, ensuring compliance with global market demands.
Warranty: The complete motor is covered by an 18-month warranty, which can be extended for special operating conditions upon agreement. We provide comprehensive technical support and after-sales service to protect customer interests, including free repair services during the warranty period to minimize downtime losses.
Compliance Standards: Conforms to international standards including NEMA MG1, IEEE 841, and API 541/547, with performance metrics meeting advanced global levels. The product also complies with the IEC 60034 series of international standards, fulfilling requirements for worldwide export and use.
